Climate Pro D18
Targeted heating or cooling in any season.
With a space-saving footprint of slightly over 4 sq. ft., the Climate Pro D18 delivers 15,000 Btu/h of spot cooling and 13,100 Btu/h of supplemental heating. It’s a year-round solution for keeping people comfortable and productive — and for keeping electronics up and running.
- Modest power usage. Runs on 115V/20 amp circuit and consumes 1.56 kW (cooling) and 1.31 kW (heating).
- Effective cooling in conditions from 65° to 95°F.
- Provides heating in conditions from 24° to 80°F (with plenum and air entering outdoor heat exchanger)
15,500 Btu/h
Cooling Capacity
13,100 Btu/h
Heating Capacity
1 Phase, 115V
Voltage
Find your local MovinCool dealer
Find a Dealer
Climate Pro D18 Features
Features that add value.
The Climate Pro D18 features advances that distinguish the entire Climate Pro Series — so you get added assurances of safety and ease of operation.
See the features that distinguish the entire Climate Pro Series.
Advanced features include:
-
Programmable electronics for automatic operation after hours and weekends.
-
Wireless connectivity-ready for remote monitoring and e-notifications of performance.
Moderately quiet, reliable operation.
At highest speed with condenser duct, sound level is 65 dB(A) — similar to sound levels of a conversation with friends.
Electronic Features |
|
| Control Panel | Programmable |
Cooling/Heating Capacity |
|
| Rating Conditions: Cooling: 95°F @ 60% RH | Cooling: 15,500 Btu/h |
| Heating: Indoor @ 70°F / Outdoor @ 47°F @ 50% RH | Heating: 13,100 Btu/h |
Electrical Characteristics |
|
| Voltage Requirement | 1 Phase, 115 V |
| Total Power Consumption | Cooling: 1.56 kW, Heating: 1.31 kW |
| Current Consumption | Cooling: 15.1 amps, Heating: 15.8 amps |
| Recommended Fuse Size | 20 amps |
| NEMA Plug Configuration | 5-20P |
| Min. - Max. Voltage | 104 - 127 V |
Fans |
|
| Motor Output | 0.055 kW Evaporator 0.120 kW Condenser |
Indoor Heat Exchanger (Supply) |
|
| Fan Type | Centrifugal |
| Max. Air Flow - High/Mid/Low | 540/440/350 CFM |
| Max. External Static Pressure | 0.31 IWG |
Outdoor Heat Exchanger (Exhaust) |
|
| Fan Type | Centrifugal |
| Max. Air Flow | 825 CFM |
| Max. External Static Pressure | 0.19 IWG |
Compressor |
|
| Type | Hermetic Rotary |
| Output | 0.9 kW |
Refrigerant |
|
| Type | R-410A |
Dimensions |
|
| W x D x H | 22 x 27 x 51 in |
Weight |
|
| Net / Shipping | 198 / 236 lb |
Power Cord |
|
| Gauge | 12 AWG (3-core) |
| Length | 10 ft |
Condensate Tank |
|
| Capacity | 5 gal |
Operating Conditions |
|
| Min. - Max. @ 50% RH | Cooling: 65° - 95°F Heating: Without Plenum: 40°F - 80°F (Air entering indoor and outdoor heat exchangers) With Plenum: 40°F - 80°F (Air entering indoor heat exchanger) 24°F - 80°F (Air entering outdoor heat exchanger) |
Max. Duct Length |
|
| Supply Duct Hose | 25 ft |
| Exhaust Duct Hose | 100 ft |
Max. Sound Level |
|
| With Condenser Duct - High/Mid/Low | 65/64/63 dB(A) |
| Without Condenser Duct - High/Mid/Low | 66/65/64 dB(A) |
Specifications subject to change without notice. All models feature compressor overload relay and fan motor protection. All models also feature compressor short-cycle protection, return air thermostat, automatic restart and accommodate a condensate pump kit. |  |
Images/Videos |
Callout No. |
Part No. |
Item |
Description |
|---|---|---|---|---|
1 |
481170-0450 |
Supply Air Flange Kit, 5-in dia. |
5-in diameter white metal flange with wire clamp and mounting screws. Use with supply air ducts. |
|
1B |
481170-0480 |
Supply Air Flange Kit, 5-in dia., Quick Connect type |
5-in diameter black plastic flange with mounting screws. Use with Quick Connect Nozzle Kit. |
|
2 |
484209-0480 |
Nozzle Kit, 5-in dia. |
5-in diameter plastic nozzle that extends up to 2 feet in length. Quick connect type. Includes trim ring. |
|
4 |
LA481744-0420 |

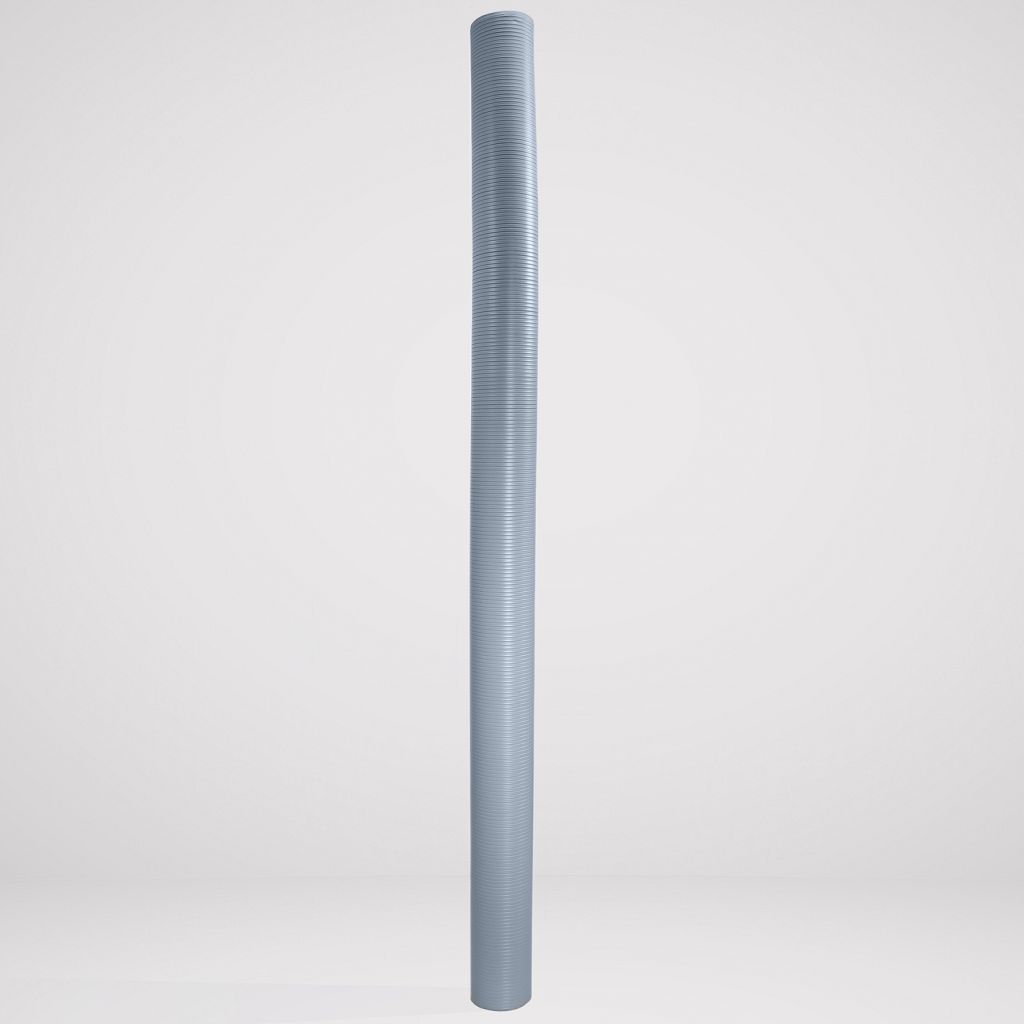

Self-Supported Duct, 5-in dia. |
5-in diameter, gray plastic duct that extends from 6.5 to 10 feet in length. |
|
5 |
481851-0200 |

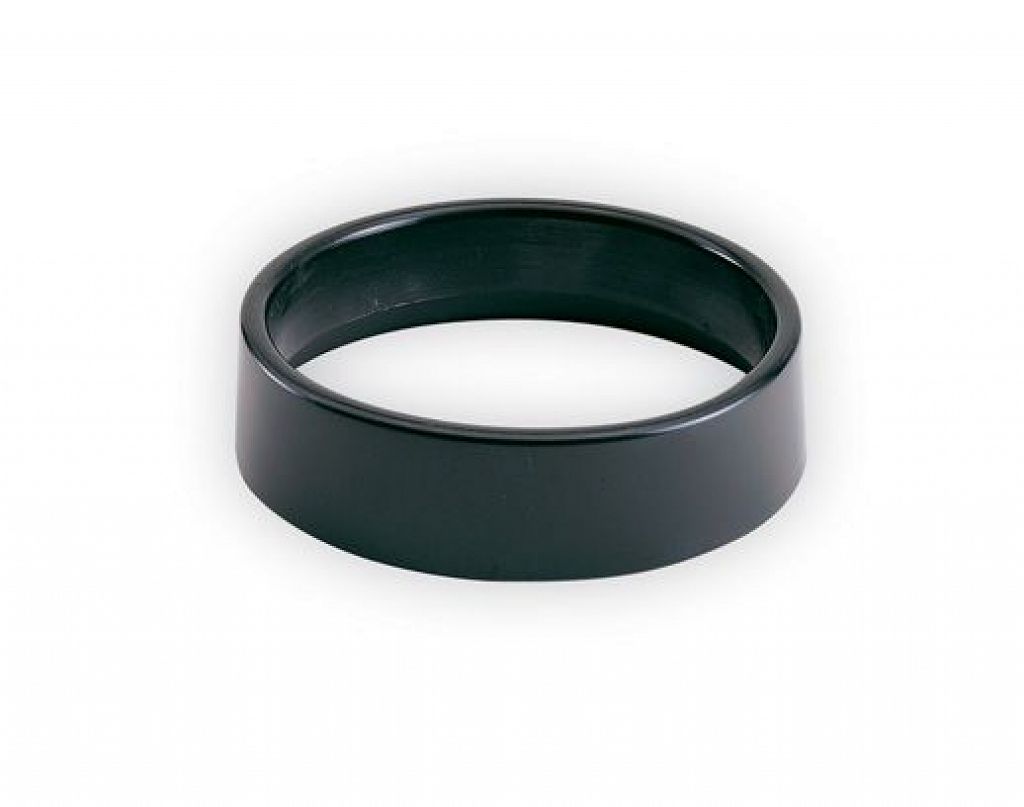

Trim Ring, 5-in dia. |
5-in diameter black plastic ring mounts as end caps for extension duct. |
|
6 |
481769-0280 |
Supply Air Nozzle Adapter Kit, 5-in dia. |
Adapter converts airflow from louvers to nozzles or air ducts. |
|
8 |
LA481744-0410 |

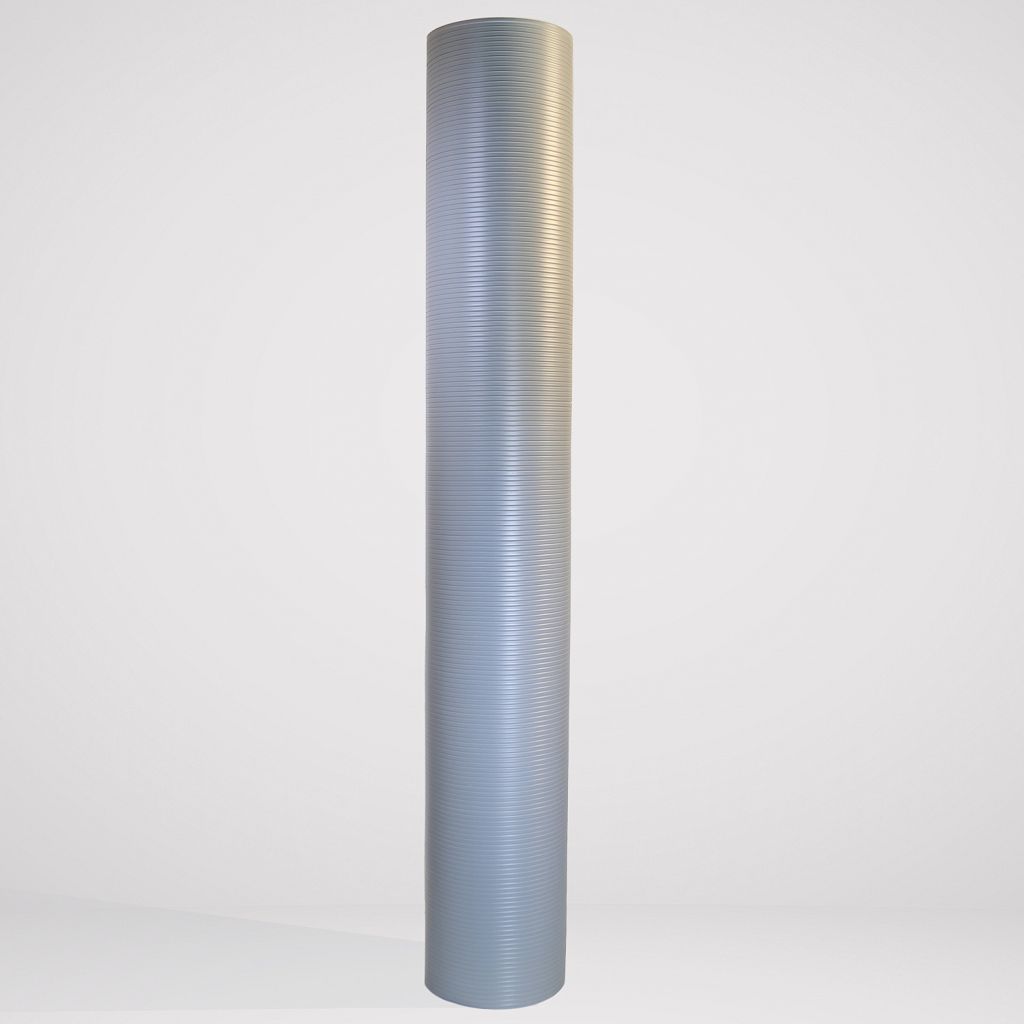

Self-Supported Duct, 12-in dia. |
12-in diameter plastic duct that extends 6.5 to 10 feet in length |
|
8A |
LAY45771-0060 |
Flexible Air Duct, 12-in dia. (not shown) |
12-in diameter wire-reinforced, accordion-style duct in 10-ft length for outdoor air exhaust. Includes clamp. |
|
9 |
LA146373-8280 |

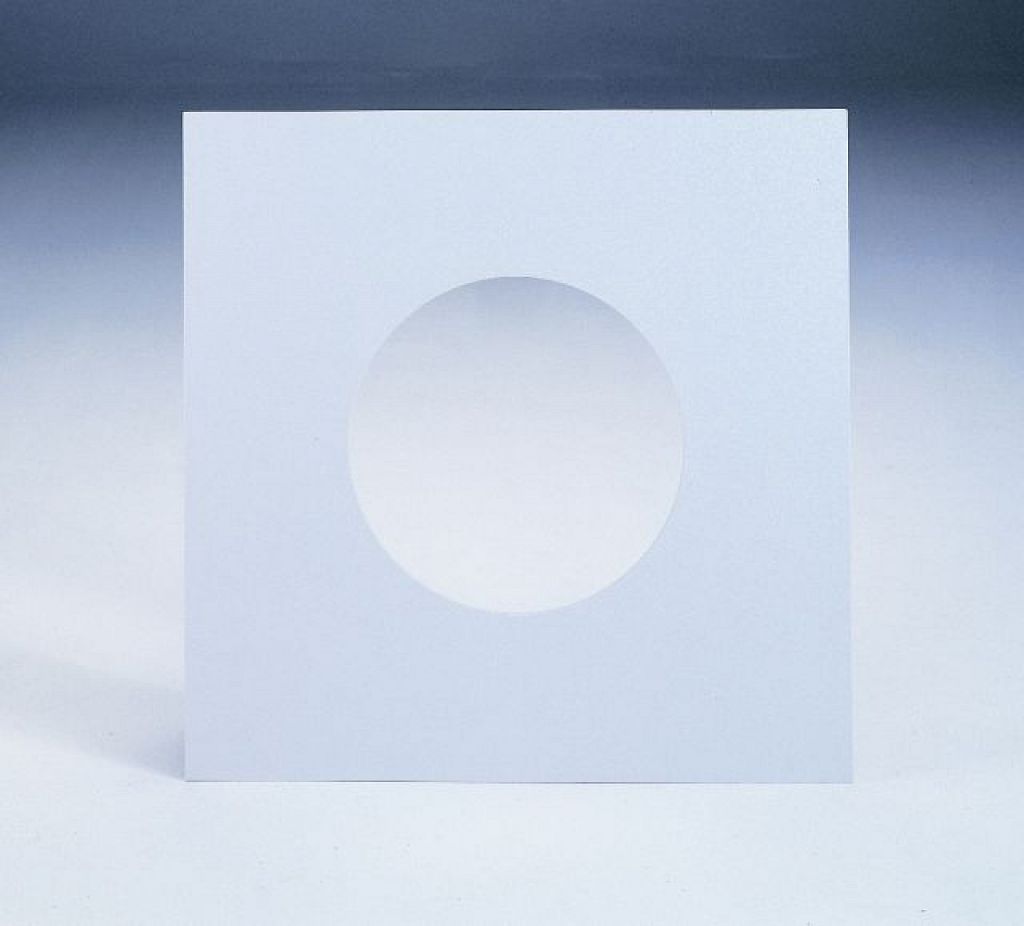

Celling Tile Kit, 12-in hole, plastic |
24-in x 24-in plastic white tile with 12-in hole for exhaust air self-supported duct. |
|
9A |
484490-1030 |

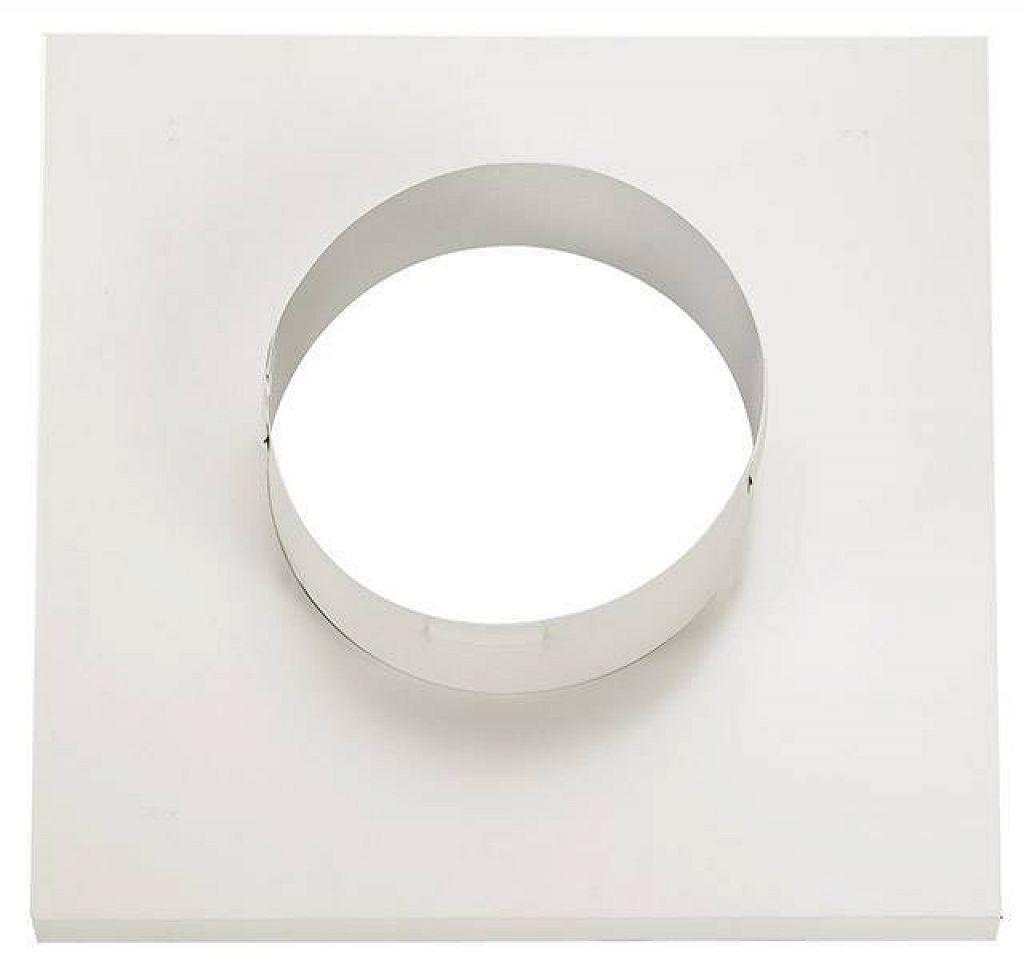

Ceiling Tile, 12-in hole, metal |
24-in x 24-in sheet metal tile with 12-in hole and built-in flange for exhaust air flexible duct kit |
|
10 |
484350-1490 |

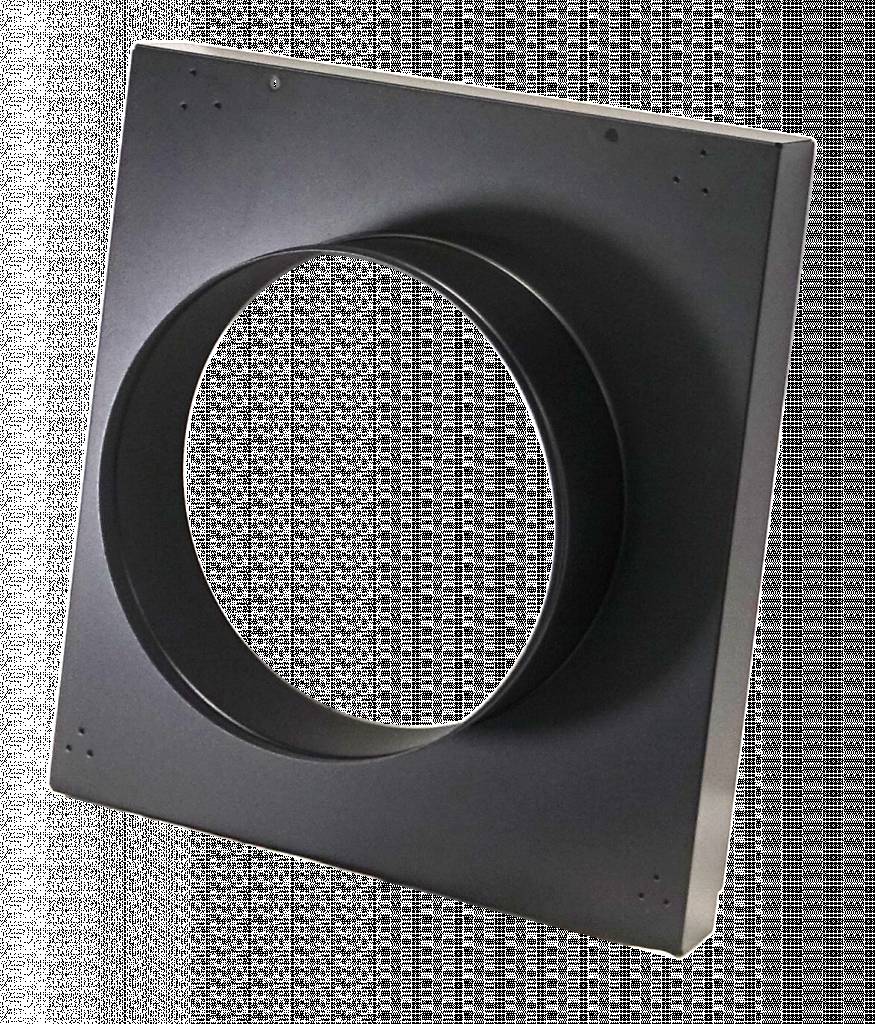

Outdoor Heat Exchanger Plenum |
Black plastic plenum for return air to condenser. Hinged for filter cleaning. |
|
11 |
484789-0210 |
Condensate Pump Kit, 115V |
115V pump kit includes 3/8-in diameter x 20-ft length hose. Includes installation hardware. Maximum lift: 20 feet at 115V |
|
12 |
484350-1200 |
Indoor Heat Exchanger Plenum |
Black plastic plenum for return air to evaporator. |
|
15 |
LAY84420-0690 |

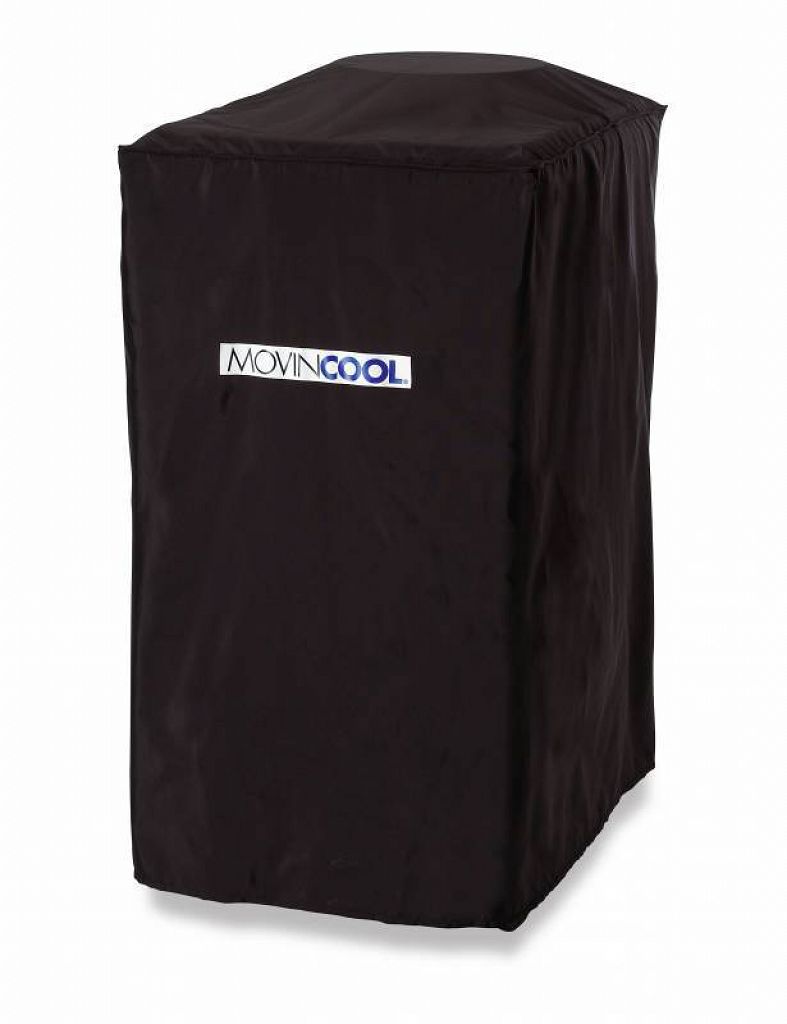

Storage Cover |
Durable black nylon oxford unit storage cover. Dimensions: 22 x 28-1/4 x 44-1/2. |
Accessory Applications
Auto Condensate Removal
Why bother with emptying the drain tank when you can install a condensate pump to remove the water automatically? This pump has a 17-ft lift capacity to reach virtually any remote drain.
# | Accessory | Climate Pro D12 / D18 |
|---|---|---|
11 | Condensate Pump Kit | 484789-0210 |
NOTE: All part numbers come with one part except where noted. All kits include additional pieces such as clamps and screws. See parts description box for more information.
Exhaust Air Removal & Supply Air Intake
MovinCool makes removing exhaust easy. Simply replace the existing ceiling tile with the MovinCool ceiling tile accessory. Place the self-supported or flexible duct on top of the unit and insert it into the ceiling tile. That’s all it takes. When balanced airflow is required, attach the outdoor heat exchanger plenum with a duct from the side of the unit to an outside air source. The air to the condenser is pulled from outside the room to eliminate problems associated with negative air pressure.
# | Accessory | Climate Pro D12 | Climate Pro D18 |
|---|---|---|---|
8 | Self-Supported Duct, 12-in dia. (a) | LA481744-0410 | LA481744-0410 |
8A | Flexible Duct Kit, 12-in dia. (not shown) (b) | LAY45771-0060 | LAY45771-0060 |
9 | Ceiling Tile, plastic (c) | LA146373-8280 | LA146373-8280 |
9A | Ceiling Tile, metal (not shown) (d) | 484490-1030 | 484490-1030 |
10 | Outdoor Heat Exchanger Plenum (e) | 484350-1340 | 484350-1490 |
REQUIRED ACCESSORIES: (a) 9 for exhaust air removal and 9 & 10 for supply air intake; (b) 9A for exhaust air removal and 9A & 10 for supply air intake; (c) 8 for exhaust air removal and 8 & 10 for supply air intake; (d) 8A for exhaust air removal and 8A & 10 for supply air intake; (e) (8 and 9) or (8A and 9A).
NOTE: All part numbers come with one part except where noted. All kits include additional pieces such as clamps and screws. See parts description box for more information.
Spot or Remote Cooling
To use the Climate Pro D Series models to spot cool or heat-specific areas, use the nozzle adapter in place of the standard louvers. Attach supply air extension ducts to the adapter to cool or heat remote spots. Trim rings give a finished look and keep the ducts from unraveling.
# | Accessory | Climate Pro D12 | Climate Pro D18 |
|---|---|---|---|
1 | Supply Air Flange Kit * (f) | 481170-0450 | 481170-0450 |
1B | Quick Connect Supply Air Flange Kit * (g) | 481170-0480 | 481170-0480 |
2 | Quick Connect Supply Air Nozzle Kit * (h) | 484209-0480 | 484209-0480 |
4 | Self-Supported Duct, 5-in. dia. (i) | LA481744-0420 | LA481744-0420 |
5 | Trim Ring (j) | 481851-0200 | 481851-0200 |
6 | Supply Air Nozzle Adapter Kit (k) | 481769-0280 | 481769-0280 |
12 | Indoor Heat Exchanger Plenum (l) | 484350-1190 | 484350-1200 |
* Order one or two parts depending on if one or two nozzles, flanges or ducts are needed.
REQUIRED ACCESSORIES: (f) 4, 5, and 6; (g) 2 and 6; (h) 1B and 6; (i) 1, 5, and 6; (j) 4; (k) (1B and 2) or (1, 4 and 5); (l) 8 or 8A.
NOTE: All part numbers come with one part except where noted. All kits include additional pieces such as clamps and screws. See parts description box for more information.
Unit Storage
This durable unit cover is perfect for storage and transportation on an open truck. Made of black nylon oxford fabric, this cover is waterproof and mildew- and UV-treated for lasting service.
# | Accessory | Climate Pro D12 | Climate Pro D18 |
|---|---|---|---|
15 | Storage Cover | LA484420-0840 | LAY84420-0690 |
NOTE: All part numbers come with one part except where noted. All kits include additional pieces such as clamps and screws. See parts description box for more information.
