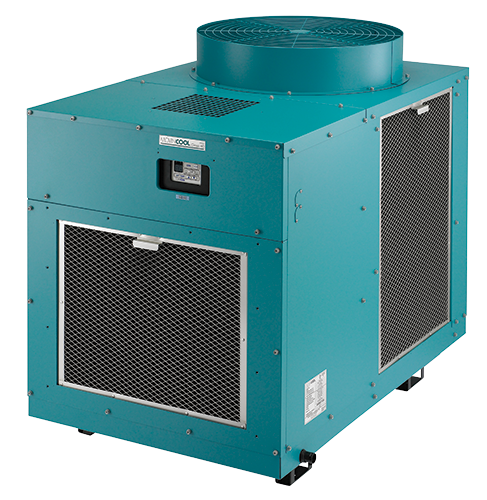

Classic 60

Five tons of cooling for the most heat-intensive applications.

The MovinCool Classic 60 is a reliable workhouse for controlling the most heat-intensive environments in manufacturing, warehousing, and outdoors. It operates on 460V with 20 amp circuit and uses 5.9 kW to produce 60,000 Btu/h of cooling.

60,000 Btu/h

Cooling Capacity

3 Phase, 460V

Voltage

Find your local MovinCool dealer

Classic 60 Features

Product features:

  • Effective temperature control in conditions from 75° to 115°F.

  • Provides targeted cooling with optional extension ducts.

  • Can be equipped for mobility with optional casters.

Simple, worry-free operation.

  • Digital controls for “set and forget” convenience.

  • Programmable for weekend and weekday operation with optional wall thermostat and remote control box (optional accessory).

  • Money-saving alternative to central air conditioning — no costly installation.

g

Cooling the most heat-intensive applications.

MovinCool’s most powerful self-contained air conditioner to keep productivity at optimum levels in the face of extraordinary heat.

Downloads


Category


Title


Language


File

Operation Manuals Classic 40 & Classic 60 Operation Manual English C40_C60(0409 to 0611)_OP_484007-2972EN.pdf
Operation Manuals Classic 40 & Classic 60 Operation Manual Spanish C40_C60(0409 to 0611)_OP_484007-2972ES.pdf
Operation Manuals Classic 40 & Classic 60 Operation Manual French C40_C60(0409 to 0611)_OP_484007-2972FR.pdf
Operation Manuals Classic 40 & Classic 60 Operation Manual French C40_C60(0711 to Present)_OP_484007-3620FR.pdf
Operation Manuals Classic 40 & Classic 60 Operation Manual English C40_60(0711 to Present)_OP(Web)_484007-3621EN0410.pdf
Operation Manuals Classic 40 & Classic 60 Operation Manual Spanish C40_C60(0711 to Present)_OP_484007-3620ES.pdf
Operation Manuals Classic 60 Operation Manual English Classic 60 Operation Manual.pdf
Product Literature Classic 60 Sales Sheet English MovinCool_Classic_60_Sales_Sheet.pdf
Service Manuals Classic 60 Service Manual English Classic 60 Service Manual.pdf
Service Manuals Classic 60 Service Manual English Classic 60 Service Manual 0409 to present.pdf

Specifications


Electronic Features

Control PanelDigital
Thermostat ControlElectronic

Cooling Capacity

Rating Conditions: 95°F @ 60% RH60,000 Btu/h

Electrical Characteristics

Voltage Requirement3 Phase, 460 V
Total Power Consumption5.9 kW
Current Consumption8.8 amps
Recommended Fuse Size20 amps
NEMA Plug ConfigurationN/A
Min. - Max. Voltage440 - 480 V

Fans

Motor Output0.75 kW Evaporator
0.40 kW Condenser

Evaporator

Fan TypeCentrifugal
Max. Air Flow1580 CFM
Max. External Static Pressure1.35 IWG

Condenser

Fan TypePropeller
Max. Air Flow3800 CFM
Max. External Static Pressure0.05 IWG

Compressor

TypeHermetic Scroll
Output3.89 kW

Refrigerant

TypeR-410A

Dimensions

W x D x H32 x 49 x 42 in

Weight

Net / Shipping474 / 566 lb

Power Cord

GaugeN/A
LengthN/A

Operating Conditions

Min. - Max. @ 50% RH75° - 115°F

Max. Duct Length

Per Cold Duct HoseVaries
Hot Duct Hose40 ft

Max. Sound Level

With Condenser Duct N/A
Without Condenser Duct 72 dB(A)

Specifications subject to change without notice. All models feature compressor overload relay and fan motor protection. All models also feature compressor short-cycle protection, return air thermostat, automatic restart and accommodate a condensate pump kit. All portable models are 50 Hz-compatible with a slight performance decrease from specifications listed.


Accessories


#


Part Num


Item


Description

1481170-0191Exhaust Air Flange Kit, 12-in dia.12-in diameter gray metal flange with wire clamp and mounting screws.
2481170-0091Chamber Extender Flange Kit (not shown)Gray metal flange with wire clamp and mounting screws.
2481849-1431Chamber ExtenderGray metal cylinder raises exhaust air chamber 16 inches above unit.
3481769-0041Two-way ChamberInsulated gray plastic chamber diverts airflow in two directions. Use 6-in extension ducts.
3481170-0151Reducer Flange Kit (not shown)Gray metal flange converts mounting holes on Classic 60 for two or three-way chamber and chamber extender flange.
3481769-0051Three-way Chamber (not shown)Insulated gray plastic chamber diverts airflow in three directions. Use 6-in extension ducts.
4481744-0030Self-Supported Duct, 6-in dia.6-in adjustable diameter, white plastic duct that extends from 6.5 to 10 feet in length.
5481851-0210Trim Ring, 6-in dia.6-in diameter black plastic ring mounts as end caps for extension duct.
6481744-0060Self-Supported Duct, 12-in dia.12-in diameter white, plastic duct that extends 6.5 to 10 feet in length
7LA484500-3430Wall ThermostatWeekday and weekend programmable digital millivolt thermostat.
8484500-0431Remote Control KitKit includes remote control box and installation hardware. Use six 18AWG plus one ground wire (wire not included).
9484709-0020Caster KitFour casters and wrench.
