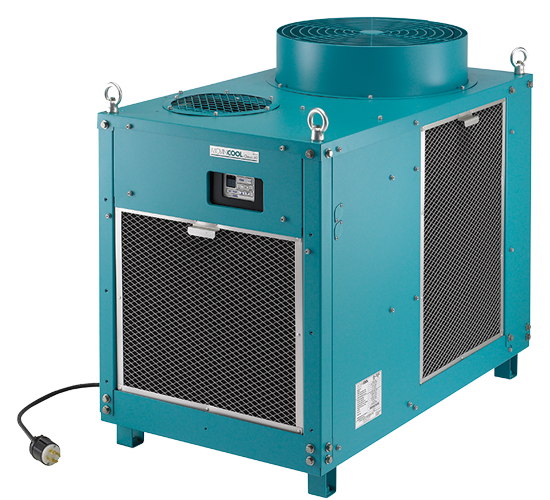

Classic 40

Over three tons of cooling for commerce and industry.

The MovinCool Classic 40 is a practical, flexible alternative to central systems for controlling heat-intensive environments in factories and warehouses. Operating on 230V and 25 amp circuit, it uses only 4.2 kW to generate 39,000 Btu/h of cooling.

39,000 Btu/h

Cooling Capacity

3 Phase, 220V

Voltage

Find your local MovinCool dealer

Classic 40 Features

N

Effective temperature control.

  • Effective temperature control in conditions from 75° to 115°F.
  • Provides targeted cooling with optional extension ducts.

Advanced features:

  • Can be equipped for mobility with optional wagon (dolly) or casters kit.
  • Adaptable to available space — use as floor-standing or ceiling-mount.
  • Optional 5-gal. condensate tanks for applications without drain access.

Simple, worry-free operation.

  • Digital controls for “set and forget” convenience.
  • Programmable for weekend and weekday operation with wall thermostat and remote control box (optional accessory).
  • Affordable alternative to central air conditioning — avoids costly installation.

Downloads


Category


Title


Language


File

Installation Manuals Classic 40 Compressor Relay (484007-3770) English 30HU(C40)_CompRelay_INST_484007-3770.pdf
Operation Manuals Classic 40 & 60 Operation Manual 0409 to 0611 - French French Download File
Operation Manuals Classic 40 & 60 Operation Manual 0711 to Present - French French Download File
Operation Manuals Classic 40 & Classic 60 Operation Manual English C40_C60(0409 to 0611)_OP_484007-2972EN.pdf
Operation Manuals Classic 40 & Classic 60 Operation Manual Spanish C40_C60(0409 to 0611)_OP_484007-2972ES.pdf
Operation Manuals Classic 40 & Classic 60 Operation Manual French C40_C60(0409 to 0611)_OP_484007-2972FR.pdf
Operation Manuals Classic 40 & Classic 60 Operation Manual French C40_C60(0711 to Present)_OP_484007-3620FR.pdf
Operation Manuals Classic 40 & Classic 60 Operation Manual English C40_60(0711 to Present)_OP(Web)_484007-3621EN0410.pdf
Operation Manuals Classic 40 & Classic 60 Operation Manual Spanish C40_C60(0711 to Present)_OP_484007-3620ES.pdf
Operation Manuals Classic 40 Operation Manual English Classic 40 Operation Manual.pdf
Product Literature Classic 40 & 60 Product Sheet English Download File
Product Literature Classic 40 Sales Sheet English MovinCool_Classic_40_Sales_Sheet.pdf
Product Literature MovinCool Catalog 2020 English Download File
Service Manuals Classic 40 Service Manual English Classic 40 Service Manual.pdf
Service Manuals Classic 40 Service Manual English Classic 40 Service Manual 0509 to present R410A rev.pdf
Spare Parts Catalogs Classic 40 Spare Parts Catalog English Classic_40_Spare_Parts_Catalog_2011.pdf

Specifications


Electronic Features

Control PanelDigital
Thermostat ControlElectronic

Cooling Capacity

Rating Conditions: 95°F @ 60% RH39,000 Btu/h

Electrical Characteristics

Voltage Requirement3 Phase, 220 V
Total Power Consumption4.2 kW
Current Consumption14 amps
Recommended Fuse Size25 amps
NEMA Plug ConfigurationL15-30
Min. - Max. Voltage198 - 240 V

Fans

Motor Output0.75 kW Evaporator
0.40 kW Condenser

Evaporator

Fan TypeCentrifugal
Max. Air Flow1060 CFM
Max. External Static Pressure1.73 IWG

Condenser

Fan TypePropeller
Max. Air Flow2650 CFM
Max. External Static Pressure0.05 IWG

Compressor

TypeHermetic Scroll
Output2.3 kW

Refrigerant

TypeR-410A

Dimensions

W x D x H26 x 44 x 38 in

Weight

Net / Shipping344/396 lb

Power Cord

Gauge12 AWG (4-core)
Length6 ft

Condensate Tank

Capacity2 @ 5 gal (Optional)

Operating Conditions

Min. - Max. @ 50% RH75° - 115°F

Max. Duct Length

Per Cold Duct HoseVaries
Hot Duct Hose40 ft

Max. Sound Level

With Condenser Duct N/A
Without Condenser Duct 72 dB(A)

Specifications subject to change without notice. All models feature compressor overload relay and fan motor protection. All models also feature compressor short-cycle protection, return air thermostat, automatic restart and accommodate a condensate pump kit. All portable models are 50 Hz-compatible with a slight performance decrease from specifications listed.


Accessories


#


Part Num


Item


Description

1481170-0191Exhaust Air Flange Kit, 12-in dia.12-in diameter gray metal flange with wire clamp and mounting screws.
2481849-1431Chamber ExtenderGray metal cylinder raises exhaust air chamber 16 inches above unit.
2481170-0091Chamber Extender Flange Kit (not shown)Gray metal flange with wire clamp and mounting screws.
3481769-0051Three-way Chamber (not shown)Insulated gray plastic chamber diverts airflow in three directions. Use 6-in extension ducts.
3481769-0041Two-way ChamberInsulated gray plastic chamber diverts airflow in two directions. Use 6-in extension ducts.
4481744-0030Self-Supported Duct, 6-in dia.6-in adjustable diameter, white plastic duct that extends from 6.5 to 10 feet in length.
5481851-0210Trim Ring, 6-in dia.6-in diameter black plastic ring mounts as end caps for extension duct.
6481744-0060Self-Supported Duct, 12-in dia.12-in diameter white, plastic duct that extends 6.5 to 10 feet in length
7LA484500-3430Wall ThermostatWeekday and weekend programmable digital millivolt thermostat.
8484500-0431Remote Control KitKit includes remote control box and installation hardware. Use six 18AWG plus one ground wire (wire not included).
9484709-0011Caster KitFour casters and wrench.
10484710-0022Wagon KitBlue metal, tubular frame with four casters, drain spout assembly and two 5-gal. condensate tanks.
11484750-0021Stand KitBlue metal, tubular frame raises unit off the ground.
