Classic 10

The original, durable standard for portable spot cooling.

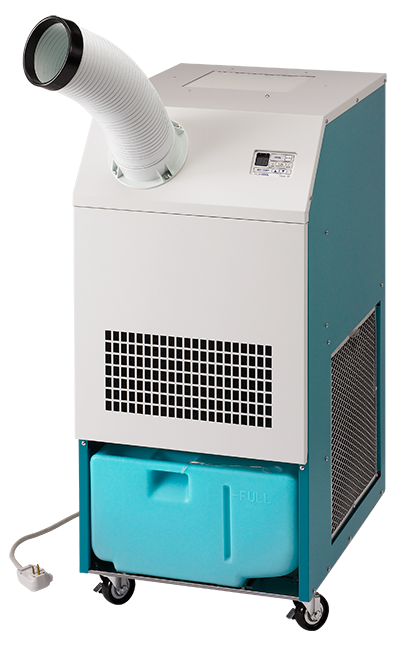

The MovinCool Classic 10 portable air conditioner launched the portable cooling industry. It provides 10,000 Btu/h of cooling and takes less than 3.5 sq. ft. of floor space. It’s ideal for keeping people cool and productive — and keeping processes working at optimum levels.

10,000 Btu/h

Cooling Capacity

1 Phase, 115V

Voltage

Find your local MovinCool dealer

Classic 10 Features

Product features:

  • No special power requirements. Runs on 115V with 15 amp circuit.
  • Minimal electricity use. Consumes just 1.1 kW.
  • Generous flexible duct. Lets you target cold air as needed up to 40 ft. from unit.
g

Temperature control for office, factory, and warehouse.

  • Cools in conditions from 70° to 105°F.

  • Digital push-button controls for swift and simple operation.

  • Ultra-quiet operation — similar to levels of a cat purring.

N

Roll it in. Set it up. Turn it on.

Keep processes running efficiently — and keep employees comfortable and productive.

Downloads


Category


Title


Language


File

Case Studies/White Papers Cracking Climate Problems (In Data Centers) English ProcessorMar09.pdf
Case Studies/White Papers MovinCool Classic 10 Unit Lasts For 25 Years At Steel Forging Mill English MovinCool_Ohio_Star_Forge_Case_Study.pdf
Case Studies/White Papers MovinCool Cools Hot Dogs English MovinCool Cools Hot Dogs - SNIPS October 2008.pdf
Case Studies/White Papers Paddock Imports Case Study - WORLDPAC English MovinCool_Paddock_Imports_Case_Study.pdf
Case Studies/White Papers Portable Spot Air Conditioners: Determining Total Cost of Ownership English MovinCool_White_Paper_Cost_of_Ownership.pdf
Case Studies/White Papers Preventing IT Heat Disasters English MovinCool_Preventing_IT_Heat_Disasters_White_Paper.pdf
Case Studies/White Papers Reducing the Cost of Keeping Office Data Centers Cool English MovinCool_Portable_Permanent_Cooling_White_Paper.pdf
Case Studies/White Papers Spot-Cooling Solutions for Emergency Situations English HPAC Engineering - July 2007 Article.pdf
Case Studies/White Papers Using Portable Spot Air Conditioners in Industrial Applications English MovinCool_Industrial_Application_White_Paper.pdf
Operation Manuals Classic 10 & 18 Operation Manual 0108 to 1208 - French French Download File
Operation Manuals Classic 10 & 18 Operation Manual 0109 to 1210 - French French Download File
Operation Manuals Classic 10 & Classic 18 Operation Manual English 08-C10_18_OP_Web_484007-2771EN.pdf
Operation Manuals Classic 10 & Classic 18 Operation Manual French 11-C10_18_OP_484007-3410FR_ 0111 to pre.pdf
Operation Manuals Classic 10 & Classic 18 Operation Manual Spanish 11-C10_18_OP_484007-3410ES_ 0111 to pre.pdf
Operation Manuals Classic 10 & Classic 18 Operation Manual English C10_18(1111 to Present)_OP_Web_484007-3631EN0410.pdf
Operation Manuals Classic 10 & Classic 18 Operation Manual French 08-C10_18_OP_Web_484007-2771FR.pdf
Operation Manuals Classic 10 & Classic 18 Operation Manual - English English 09-C10_18_OP_Web_484007-2951EN.pdf
Operation Manuals Classic 10 & Classic 18 Operation Manual - French French 09-C10_18_OP_Web_484007-2951FR.pdf
Operation Manuals Classic 10 & Classic 18 Operation Manual - Spanish Spanish 09-C10_18_OP_Web_484007-2951ES.pdf
Operation Manuals Classic 10 & Classic 18 Operational Manual Spanish 08-C10_18_OP_Web_484007-2771ES.pdf
Operation Manuals Classic 10 Operation Manual English Classic 10 Operation Manual.pdf
Operation Manuals Classic 10 Quick Start Guide English Quick_Start_Guide_CL10_Rev.pdf
Operation Manuals MovinCool Classic 10 & 18 Operation Manual (2011-01 to Present) French French Download File
Product Literature Classic 10 Product Sheet English Download File
Product Literature Classic 10 Sales Sheet English MovinCool_Classic_10_Sales_Sheet.pdf
Product Literature MovinCool Catalog 2020 English Download File
Service Manuals Classic 10 & Classic 18 Service Manual English C10_C18_(0109-0111).pdf
Service Manuals Classic 10 & Classic 18 Service Manual English C10_C18_(0108-1208).pdf
Service Manuals Classic 10 Service Manual English CL10 SM_00G00089E_ 0211 to pre.pdf
Service Manuals Classic 10, Classic 18 & 20HFU-1 Service Manual English Classic 10, Classic 18 & 20HFU-1 Service Manual.pdf
Spare Parts Catalogs Classic 10 Spare Parts Catalog English Download File
Spare Parts Catalogs Classic 10 Spare Parts Catalog English C10_SPC_2nd issue_00G00067EA.pdf

Specifications


Electronic Features

Control PanelDigital

Cooling Capacity

Rating Conditions: 95°F @ 60% RH10,000 Btu/h

Electrical Characteristics

Voltage Requirement1 Phase, 115 V
Total Power Consumption1.1 kW
Current Consumption10 amps
Recommended Fuse Size15 amps
NEMA Plug Configuration5-15
Min. - Max. Voltage105 - 125 V

Fans

Motor Output0.15 kW

Evaporator

Fan TypeCentrifugal
Max. Air Flow265 CFM
Max. External Static Pressure0.33 IWG

Condenser

Fan TypeCentrifugal
Max. Air Flow740 CFM
Max. External Static Pressure0.13 IWG

Compressor

TypeHermetic Rotary
Output0.7 kW

Refrigerant

TypeR-410A

Dimensions

W x D x H19 x 26 x 41 in

Weight

Net / Shipping156 / 194 lb

Power Cord

Gauge14 AWG (3 -core)
Length10 ft

Condensate Tank

Capacity5 gal

Operating Conditions

Min. - Max. @ 50% RH70° - 105°F

Max. Duct Length

Per Cold Duct Hose40 ft
Hot Duct Hose60 ft

Max. Sound Level

With Condenser Duct 55 dB(A)
Without Condenser Duct 58 dB(A)

Specifications subject to change without notice. All models feature compressor overload relay and fan motor protection. All models also feature compressor short-cycle protection, return air thermostat, automatic restart and accommodate a condensate pump kit. All portable models are 50 Hz-compatible with a slight performance decrease from specifications listed.


Accessories


#


Part Num


Item


Description

1481170-0180Supply Air Flange Kit, 5-in dia.5-in diameter white metal flange with wire clamp and mounting screws. Use with supply air ducts.
3484209-0030Dual Duct, 5-in dia. 5-in diameter white plastic flange with two 4-in nozzles that extend to 2 feet in length.
4481744-0090Self-Supported Duct, 5-in dia.5-in diameter, white plastic duct that extends from 6.5 to 10 feet in length.
5481851-0200Trim Ring, 5-in dia.5-in diameter black plastic ring mounts as end caps for extension duct.
7481170-0191Exhaust Air Flange Kit, 12-in dia.12-in diameter gray metal flange with wire clamp and mounting screws.
8481744-0060Self-Supported Duct, 12-in dia.12-in diameter white, plastic duct that extends 6.5 to 10 feet in length
8LAY45771-0060Flexible Air Duct, 12-in dia. (not shown)12-in diameter wire-reinforced, accordion-style duct in 10-ft length for outdoor air exhaust. Includes clamp.
9LA146373-8280Celling Tile Kit, 12-in hole, plastic24-in x 24-in plastic white tile with 12-in hole for exhaust air self-supported duct.
9GX484490-0770Ceiling Tile Kit, 12-in hole, metal24-in x 24-in sheet metal tile with 12-in hole and built-in flange for exhaust air flexible duct kit.
10LAY84270-0040Outdoor Air PlenumWhite plastic plenum for return air to condenser. Hinged for filter cleaning.
11LA484789-0121Condensate Pump Kit, 110V110V pump kit includes 3/8-in diameter x 20-ft length hose. Includes installation hardware.
12484009-0480Cover PlateBlue metal plate covers condensate collection area.
13LAY84420-0720Storage CoverDurable black nylon oxford unit storage cover.
